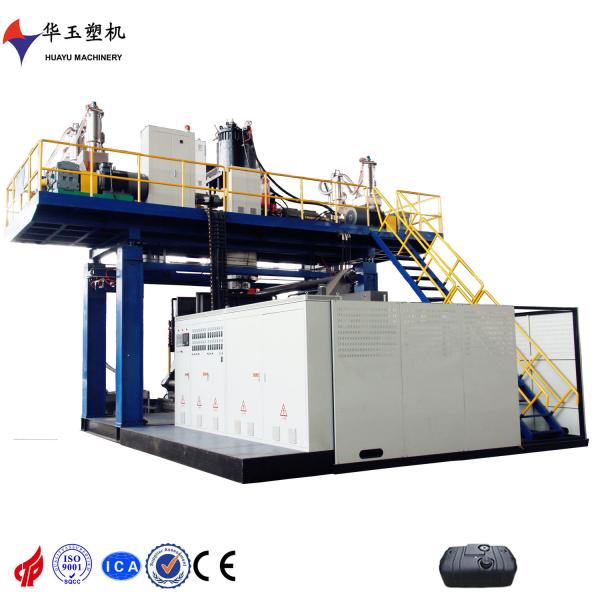

HUAYU 3000L Ten-Layer Large Capacity Water Tank Blow Molding Machine with Superior Impact Resistance

  • 1
  • 2
  • 3

Brand Name : HUAYU

Model Number : HYBM30010

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1 SET

Price : 440 000 USD

Payment Terms : T/T,L/C

Supply Ability : 1SET 120DAYS

Delivery Time : 4 MONTHS

Packaging Details : be disassembled into many parts for container transportation

Bucket Thickness : not very thick

Showroom Location : None

Air Consumption : 1.0m3/min

Average : 40kw

Stretching Stroke : according to products

Extruder Motor : 90kw

Plc : SIMENS(Germany)

Recyclability : Recyclable

Average Aonsumption : 280KW

Selling Point : High Efficiency

Blow Moulding Type : Injection Blow Moulding

Material : HDPE

Machine Demesion : 8.5*6*7.2

Average Consumption : 180kw

Control System : PLC Control

Contact Now

This 3000L ten-layer blow molding machine is designed for producing ultra-high-performance multi-layer water tanks. The ten-layer co-extrusion system allows for advanced material combinations, providing enhanced barrier properties, improved product durability, superior mechanical strength, excellent thermal stability, superior chemical resistance, advanced UV protection, superior oxygen barrier, advanced moisture barrier, and superior impact resistance. The heavy-duty cooling system ensures efficient heat dissipation, maintaining optimal operating temperatures. The machine's advanced control system offers precise control over the molding

die head

Accumulator capacity

90kg

designed by ourselves and get the patent

Die diameter

According to products

Die head heating power

110kw

Clamping System

platen size

2100*2200*60mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

160*2 320*1

clamping cylinder stroke

2100mm

clamping force

2200KN

istance between platens

1100-3200mm

max. mould size

1800*2200mm(W*H)
